Product Description
Load Capacity: 2000 Kg
Power: 2KW
Voltage: DC24V
Platfrom Material: Steel or Aluminum
Max lift height: 1350 MM
Platform Dimension(W*H) 2200*1800 MM
Weight: 400--520 Kg
Lift speed: 60--90 mm/s
System Pressure: 18Mpa

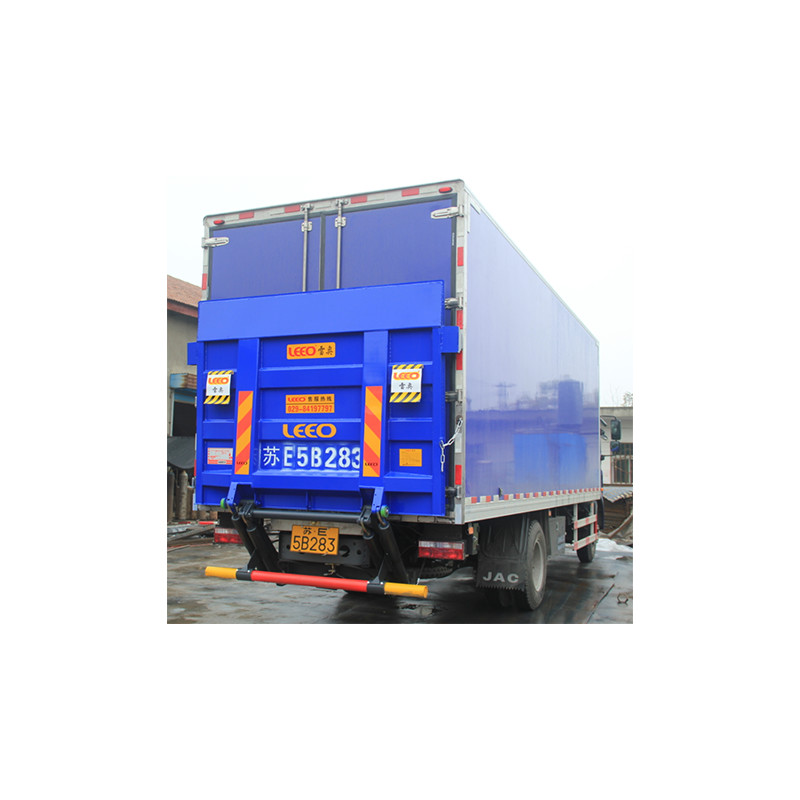

What is a hydraulic tailgate?
A Liftgate, which can also be referred to as a Tail lift, is a mechanical device which is installed permanently at the back or the rear end of a large vehicle like a truck, a lorry or a van. It is used to load and unload freight from the ground and into the back of the truck.
Tail lifts make it much easier to safely load and unload trucks/lorry/van.It can help you save the labor cost and imporve efficiency.
A tail lift can also bridge the difference in height between a loading dock and the vehicle load bed.
Tail lifts are available for many sizes of vehicle, from standard vans to articulated lorries, and standard models can lift anywhere up to 2500kg
Why Choose US
A>Our products have a high technical, its the highest level in China.
B> Our product hydraulic system selects European well-known brands—HALDEX, PAKER.MPI
C> We are a professional team and we are proficient in products, understand customers, put people first, and pursue excellence.
Main Products Parameter
| Model No | Load capacity (KG) | Height from Ground to Carriage (MM) | Platform Dimension (W*H) MM | Operating Voltage (V) | Lifting Speed (CM/S) | Total weight (KG) |
| Steel | Aluminum Alloy |
| LA-7-90 | 700 | 800-900 | 1600*1700 | 12 | 6-9 | 320 | 260 |
| LA-10-120 | 1000 | 950-1200 | 1800*1700 | 12/24 | 6-9 | 390 | 290 |
| LA-15-120 | 1500 | 950-1200 | 2000*1700 | 12/24 | 6-9 | 450 | 330 |
| LA-15-135 | 1500 | 1050-1350 | 2200*1800 | 24 | 6-9 | 490 | 370 |
| LA-15-152 | 1500 | 1150-1520 | 2300*1800 | 24 | 6-9 | 550 | 430 |
| LA-20-135 | 2000 | 1050-1350 | 2400*1800 | 24 | 6-9 | 520 | 410 |
| LA-20-152 | 2000 | 1150-1520 | 2400*1800 | 24 | 6-9 | 580 | 460 |
| LA-25-152 | 2500 | 1150-1520 | 2400*1800 | 24 | 6-9 | 630 | 490 |
| LA-25-160 | 2500 | 1150-1600 | 2400*1800 | 24 | 6-9 | 750 | 590 |
Company Profile
Xi'an Leeo Hydraulic Equipment Co., Ltd., established in August 2011, is located in the beautiful historical city - Xi'an, Shaanxi Province. It is a professional manufacturer of "truck hydraulic tailgate lift" products of high-tech private enterprises, the company gathered a number of domestic and foreign outstanding truck tailgate lift industry specialized persons, concentrate, professional, focus on truck tailgate lifts products and parts of the technology research and development, manufacturing and sales, "integrity, innovation, creating value for customers" business philosophy, To build "LEEO ® " tailgate lift high-end national brand, based on the domestic, look at the world, exhausted and domestic and foreign automobile manufacturing enterprises, logistics and transport enterprises and the community sincere cooperation and provide excellent products and the highest quality services.
FAQ
Q: WHAT ABOUT THE AFTER-SALE SERVICE?
A: IF THERE ANY QUALOTY ISSUE, PLEASE SEND US THE PHOTOS OR VIDEO,WE WILL OFFER THE SOLUTION WITHIN 24 HOURS.
Q:HOW AHOUT THE DELIVERY TIME?
A:THE DELIEVERY TIME IS ABOUT 10-15 DAYS AFTER RECEIPT DEPOSITE.
Q:HOW ABOUT THE PAYMENT?
A:WE USED T/T 50% AS DEPOSIT AND BALANCE BEFORE SHIPMENT.
Q: HOW LONG IS THE WARRANTY TIME?
A:2000 WORKING HOURS OR 12 MONTHS,WHICHEVER COMES FIRST.
