Product Description
Platform Dimension(W*H): 2300*1800 MM
Platform Material: Steel or Aluminum Alloy
Max lift height : 1520MM
Load capacity: 1500KG
Oil tank Capacity: 10L
Certificate:CE
Weight : 410--535 Kg
What is a hydraulic tailgate?

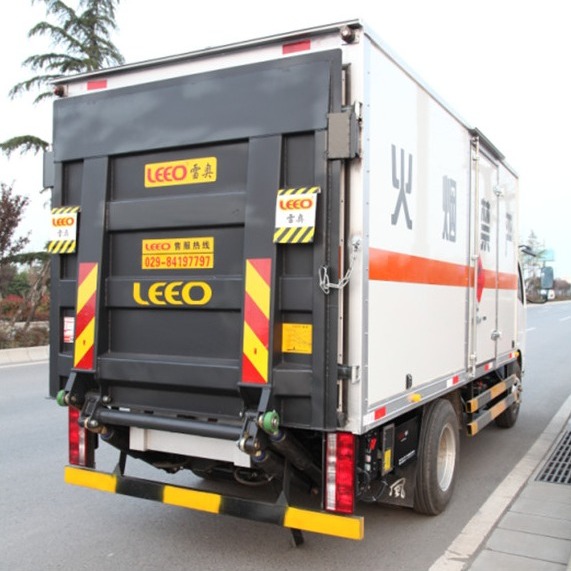

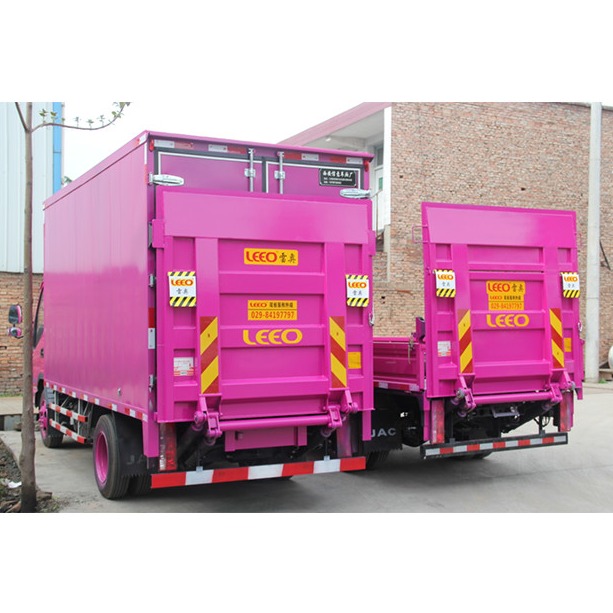

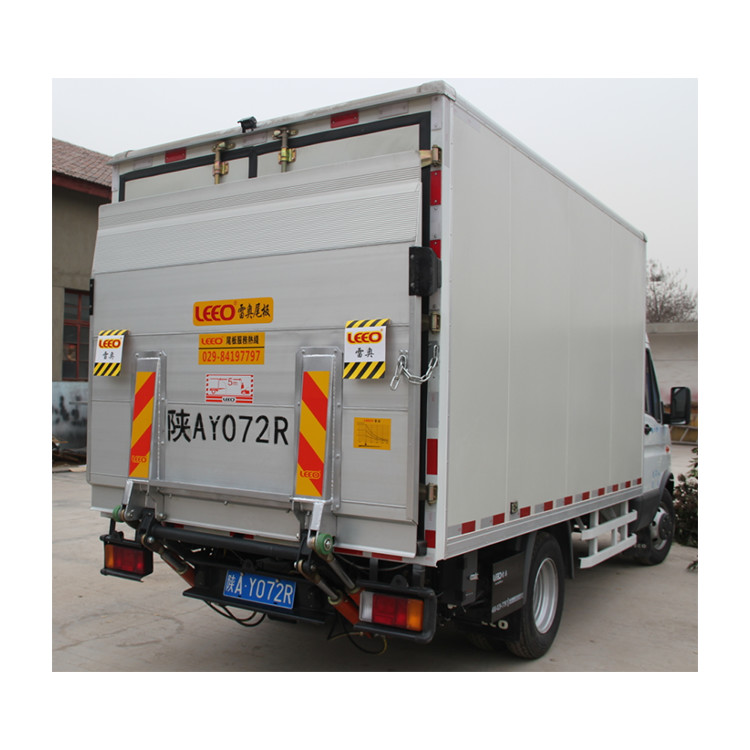

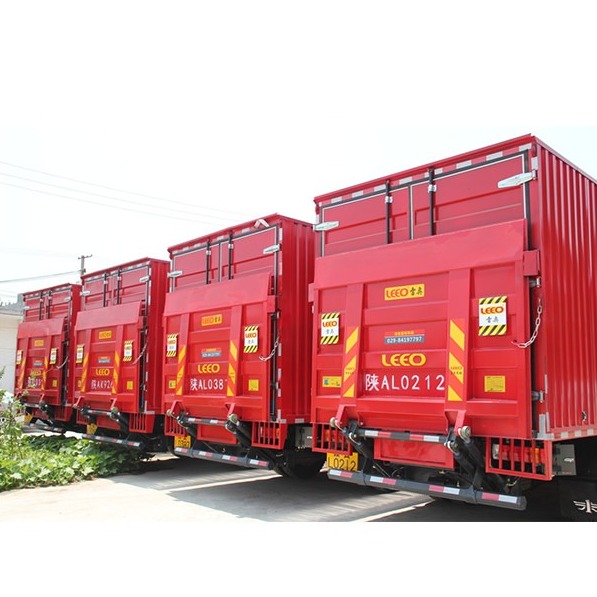

A Liftgate, which can also be referred to as a Tail lift, is a mechanical device which is installed permanently at the back or the rear end of a large vehicle like a truck, a lorry or a van. It is used to load and unload freight from the ground and into the back of the truck.
Tail lifts can help to safely load and unload trucks with cost efficiency, flexibility and a high level of operating.
The majority of tail lifts are hydraulic or pneumatic in operation, although they can be mechanical, and are controlled by an operator using an electric relay switch.
Why Choose US
A>Our tail lift have a high starting point and its the highest level in China.
B> Our product hydraulic system selects European well-known brands—HALDEX, PAKER.MPI to ensure quality
D> We are a professional team at the hydraulic industry; we are proficient in products, understand customers, put people first, and pursue excellence.
Main Products Parameter
| Model No | Load capacity (KG) | Height from Ground to Carriage (MM) | Platform Dimension (W*H) MM | Operating Voltage (V) | Lifting Speed (CM/S) | Total weight (KG) |
| Steel | Aluminum Alloy |
| LA-7-90 | 700 | 800-900 | 1600*1700 | 12 | 6-9 | 320 | 260 |
| LA-10-120 | 1000 | 950-1200 | 1800*1700 | 12/24 | 6-9 | 390 | 290 |
| LA-15-120 | 1500 | 950-1200 | 2000*1700 | 12/24 | 6-9 | 450 | 330 |
| LA-15-135 | 1500 | 1050-1350 | 2200*1800 | 24 | 6-9 | 490 | 370 |
| LA-15-152 | 1500 | 1150-1520 | 2300*1800 | 24 | 6-9 | 550 | 430 |
| LA-20-135 | 2000 | 1050-1350 | 2400*1800 | 24 | 6-9 | 520 | 410 |
| LA-20-152 | 2000 | 1150-1520 | 2400*1800 | 24 | 6-9 | 580 | 460 |
| LA-25-152 | 2500 | 1150-1520 | 2400*1800 | 24 | 6-9 | 630 | 490 |
| LA-25-160 | 2500 | 1150-1600 | 2400*1800 | 24 | 6-9 | 750 | 590 |
Company Profile
Xi'an Leeo Hydraulic Equipment Co., Ltd., established in August 2011, is located in the beautiful historical city - Xi'an, Shaanxi Province. It is a professional manufacturer of "truck hydraulic tailgate lift" products of high-tech private enterprises, the company gathered a number of domestic and foreign outstanding truck tailgate lift industry specialized persons, concentrate, professional, focus on truck tailgate lifts products and parts of the technology research and development, manufacturing and sales, "integrity, innovation, creating value for customers" business philosophy, To build "LEEO ® " tailgate lift high-end national brand, based on the domestic, look at the world, exhausted and domestic and foreign automobile manufacturing enterprises, logistics and transport enterprises and the community sincere cooperation and provide excellent products and the highest quality services.
FAQ
Q: WHAT ABOUT THE AFTER-SALE SERVICE?
A: PLEASE SEND US THE PHOTOS OR VIDEO,WHEN THERE QUALITY ISSUE,WE WILL OFFER THE SOLUTION WITHIN 24 HOURS.
Q:HOW AHOUT THE DELIVERY TIME?
A:THE DELIEVERY TIME IS ABOUT 10-15 DAYS AFTER RECEIPT DEPOSITE.
Q: HOW LONG IS THE WARRANTY TIME?
A:2000 WORKING HOURS OR 12 MONTHS,WHICHEVER COMES FIRST.
Q:HOW ABOUT THE PAYMENT?
A:WE USED T/T 50% AS DEPOSIT AND BALANCE BEFORE SHIPMENT.
